SS square tank with ss angle frame

SS SQUARE TANK WITH SS ANGLE FRAME

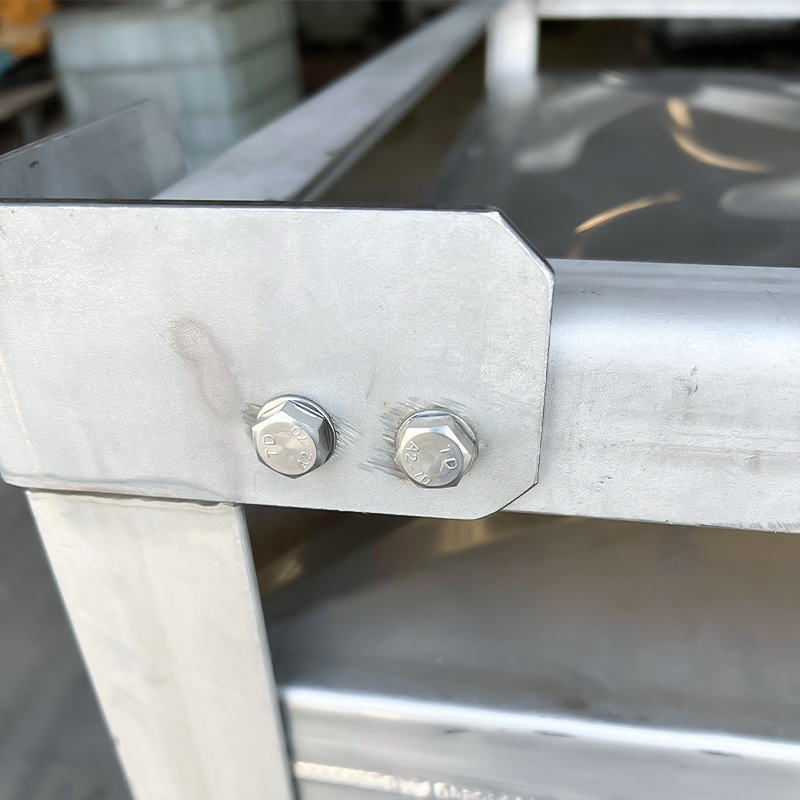

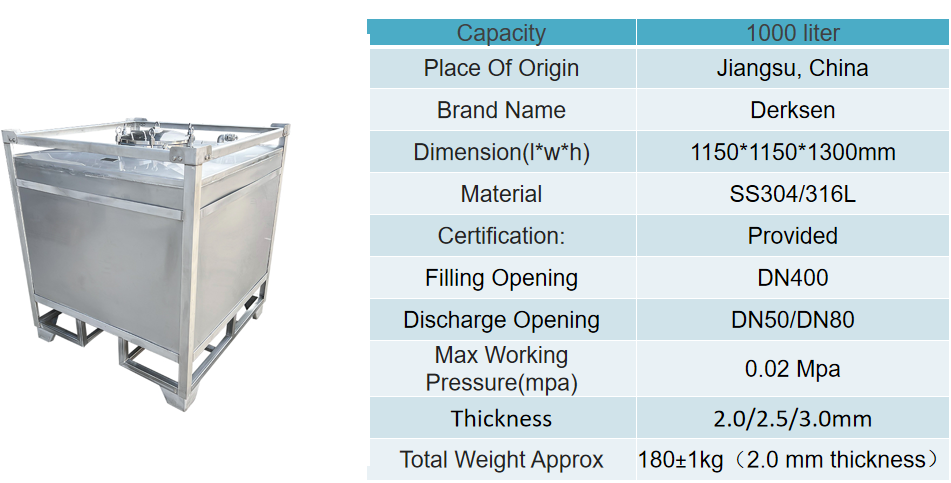

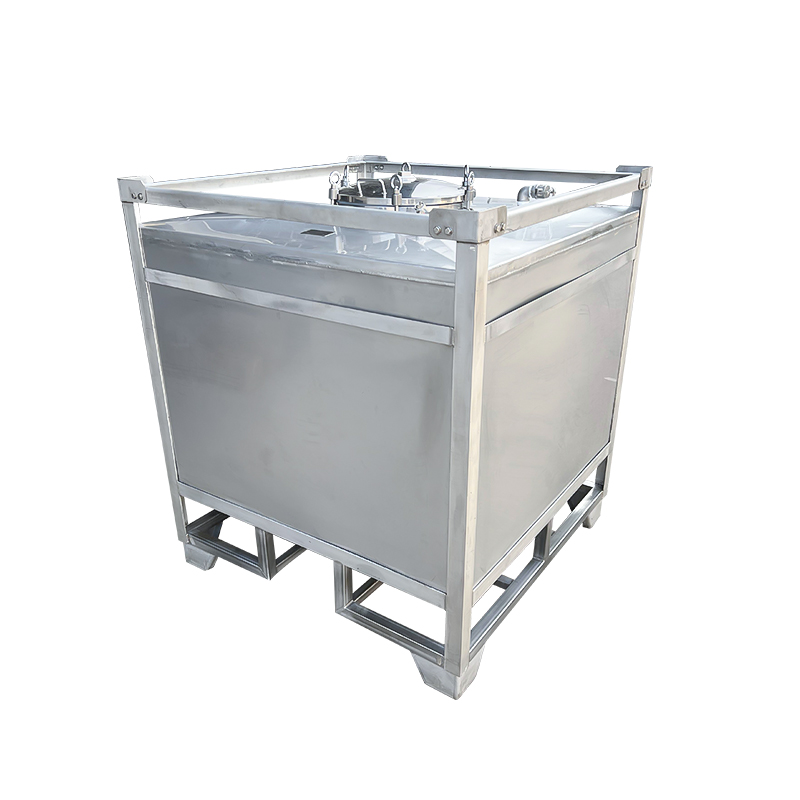

This stainless steel tank is made of 304/ 316L stainless steel including the pallet and the frame .The welding process is TIG welding. With a capacity of 1000 litres, it is specially designed for the safe storage and transportation of liquid or granular materials.The bottom pallet is welded with 40×40 stainless steel square tube, which can be stacked, revolved and reused.

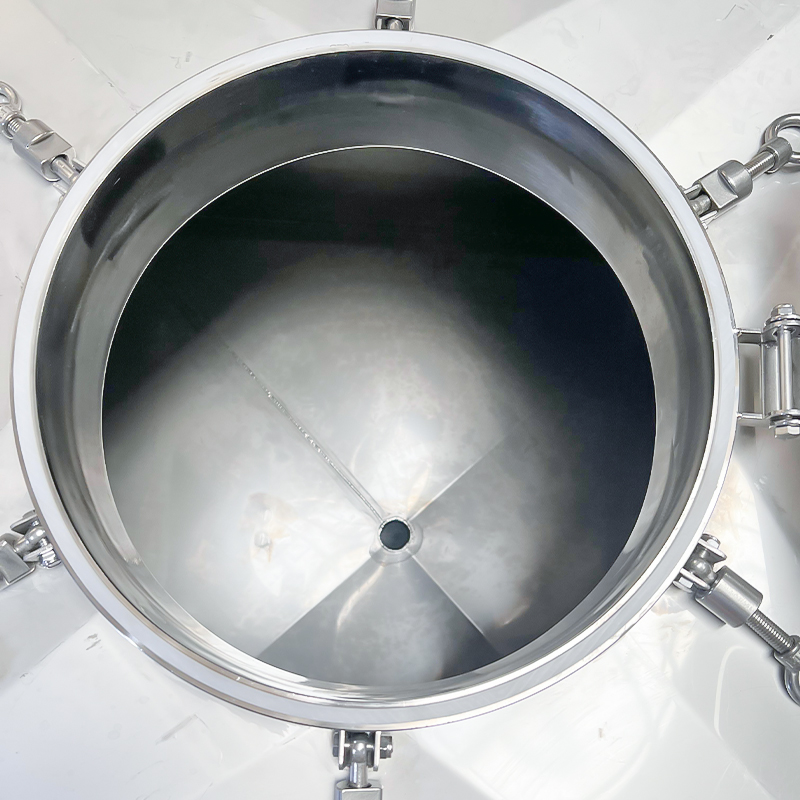

The top of this tank is equipped with atmospheric pressure manhole and emptying valve, the bottom slope is designed, and the standard discharge valve is equipped to support rapid emptying. Manholes and valve sizes can be customized.The SS tank has both durability, safety and economy, and its service life can reach more than 10 years.

This stainless steel tank supports custom size and style, with a slope at the bottom, and can quickly and completely discharge liquid. Various magnetic flip plates and glass level gauges can also be installed. It can install stirring motor, temperature and pressure sensor, remote infrared alarm and so on. Manhole sealing rings can be made of silicone , EPDM,PTFE and Fluorine-coated material. The bottom ball valve is equipped with F+DC quick connector.
