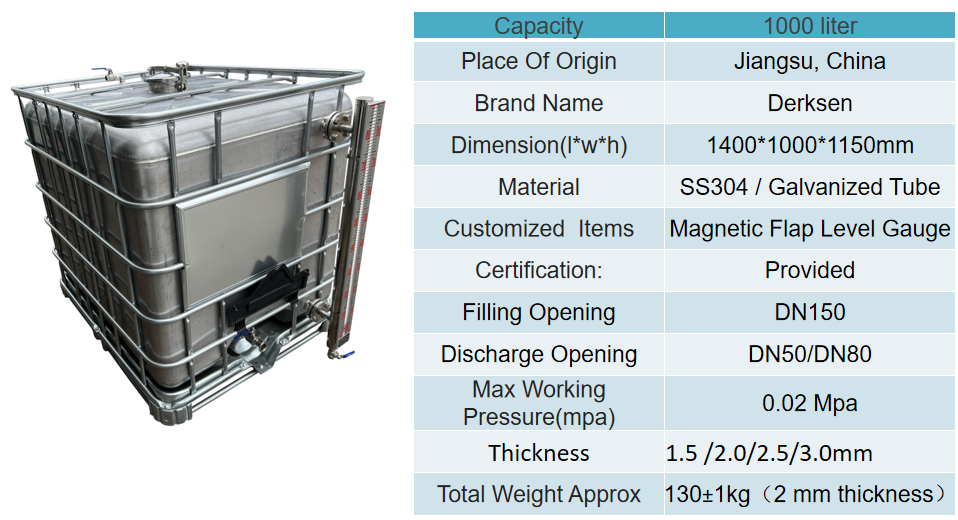

SS tank 1000l with magnetic flap

SS TANK 1000L WITH MAGNETIC FLAP DESCRIPTION

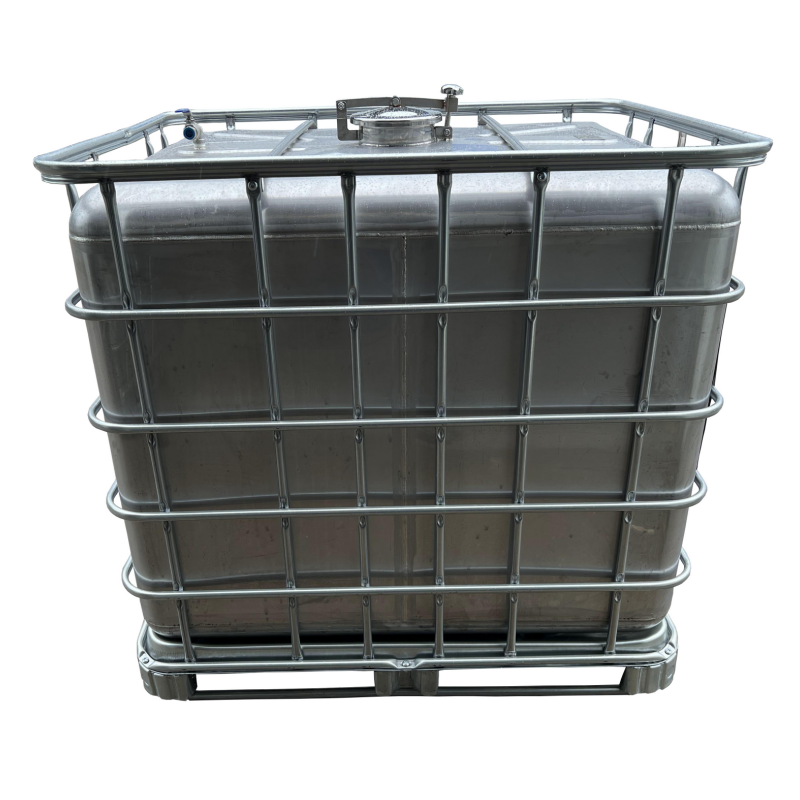

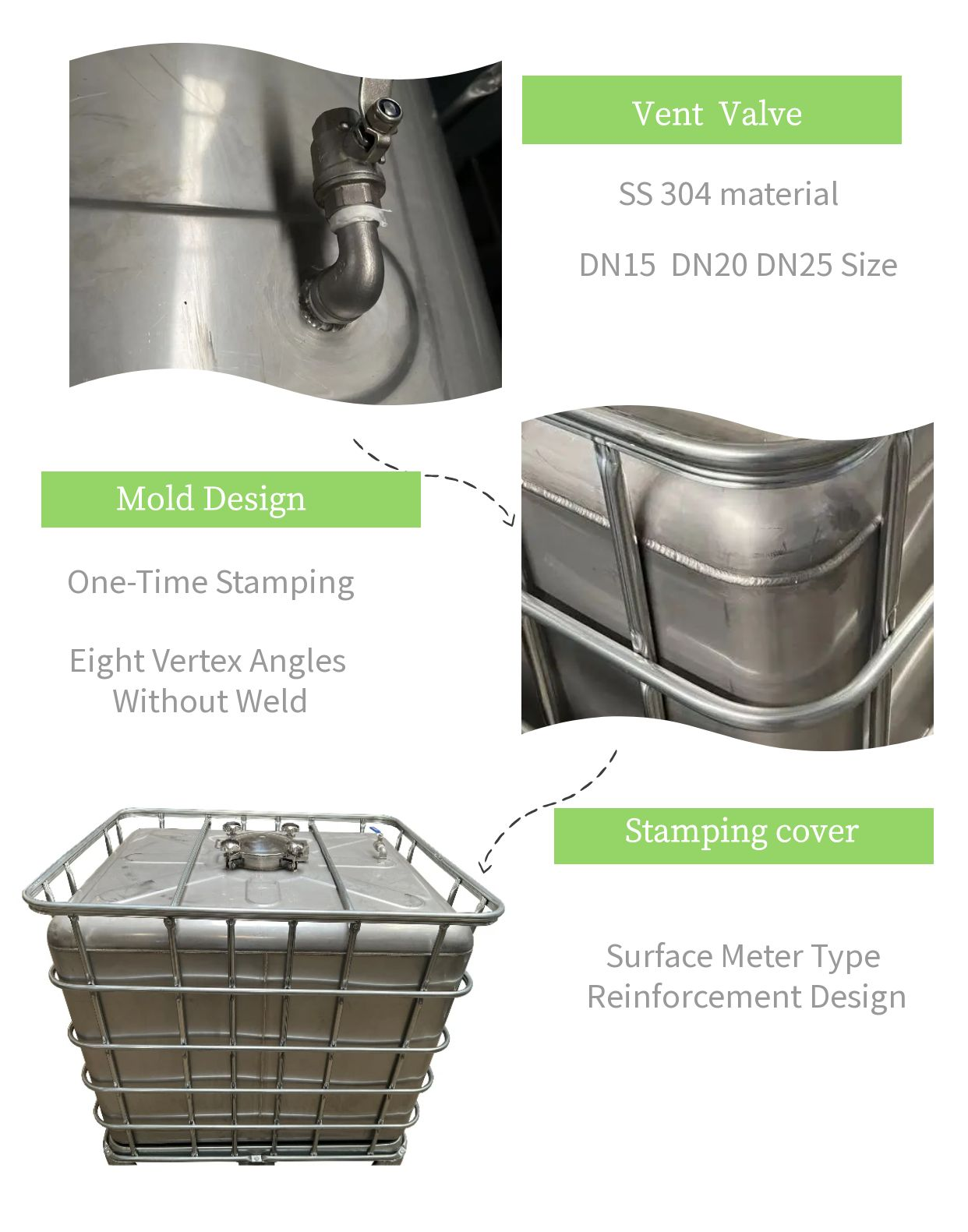

The cover plate of this stainless steel tank is made of 304 stainless steel plate by a one-time stamping mold, Eight Vertex Angles without splicing welds, the cover plate has a reinforcement design, and the side plate is welded with the cover plate after bending. The welding process is TIG welding. With a capacity of 1000 litres, it is designed for the safe storage and transport of liquid or granular materials.

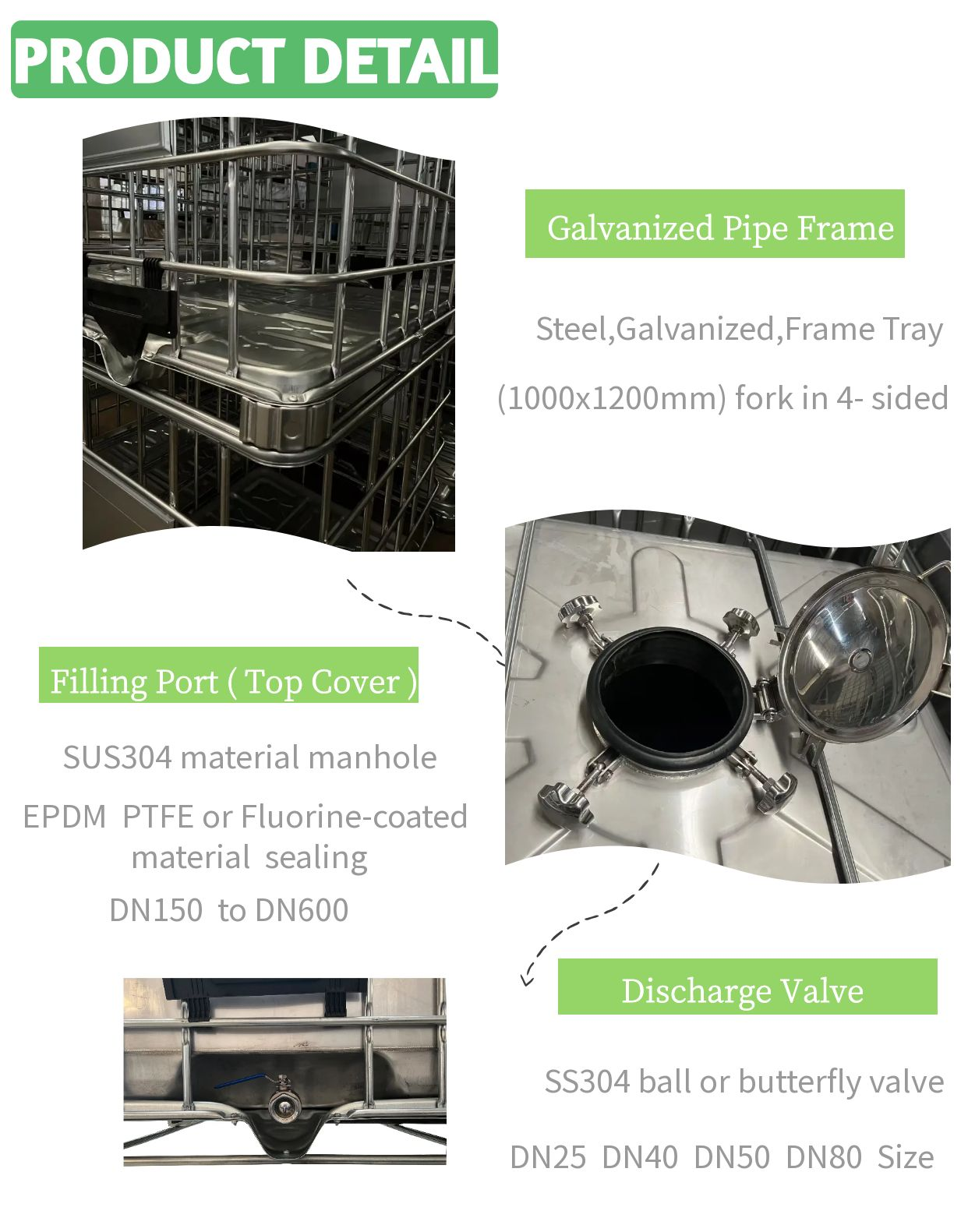

The outer frame is made of galvanized round pipe by automatic welding, and SS304 stainless steel outer frame can also be customized. The outer frame can be stacked, and reused.

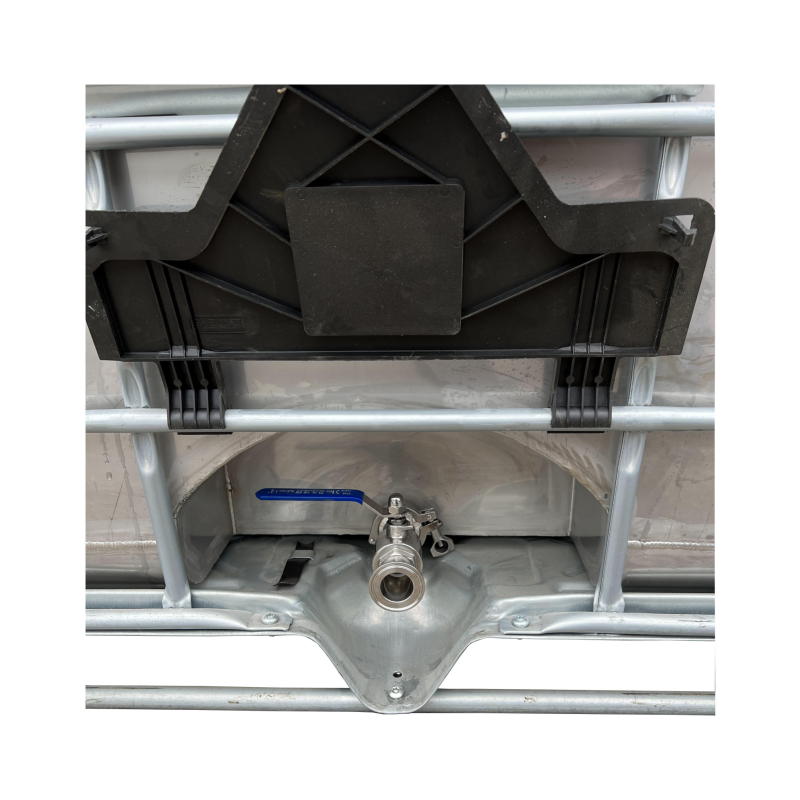

This SS tank is equipped with atmospheric manhole and vent valve at the top, and standard discharge valve at the bottom to support fast emptying.

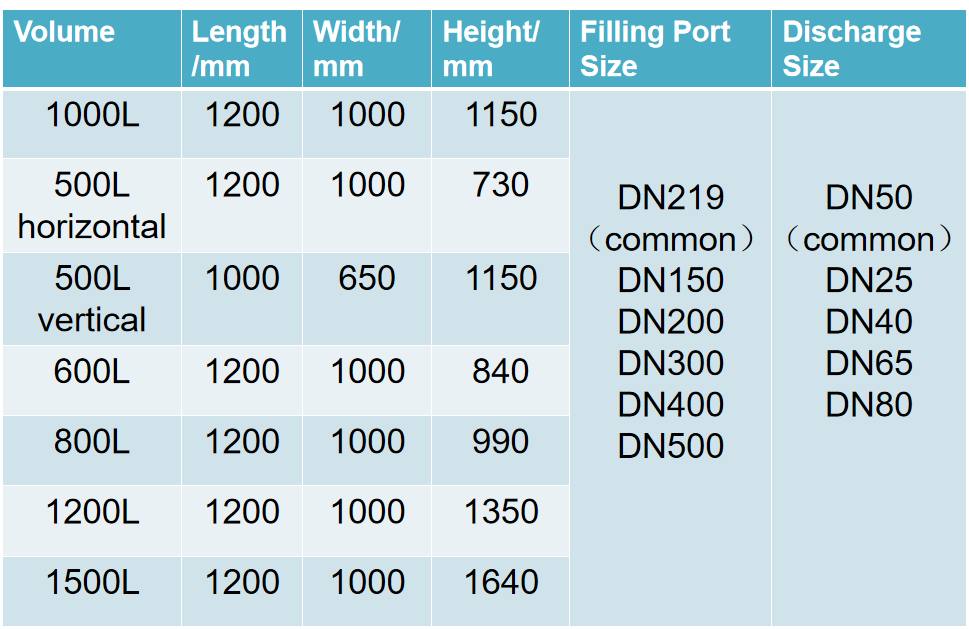

Manhole and valve size can be customized,The SS tank combines durability, safety and economy with a service life of more than 10 years, making it an ideal alternative to traditional plastic tank.

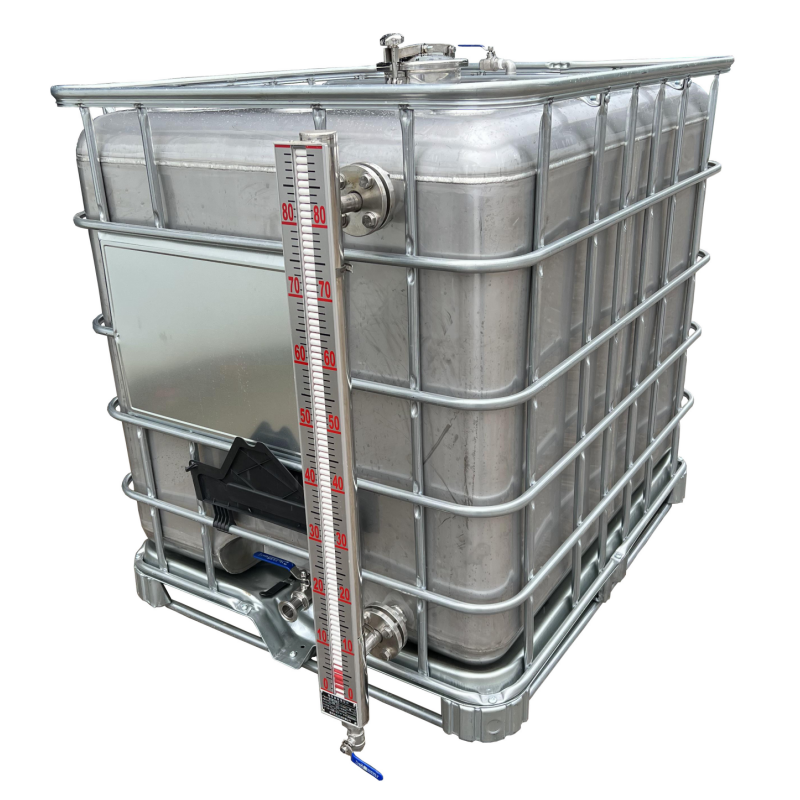

Magnetic Flap Level Gauge

The magnetic flip plate level meter drives the external flip plate to flip with the rise and fall of the liquid level through the magnetic float to realize the visualization of the liquid level. The float has a built-in permanent magnet, and when the liquid level changes, its magnetic field couples the external two-color flip plate (such as red / white), triggering the flip display height. Without power supply, high temperature, high pressure and corrosion medium, sensors can be installed to output electrical signals, which is suitable for industrial storage tanks, reaction cauldrons and other scenes. It is intuitive, reliable and easy to maintain.
