SS tank 1000l with agitator

SS TANK 1000L WITH AGITATOR DESCRIPTION

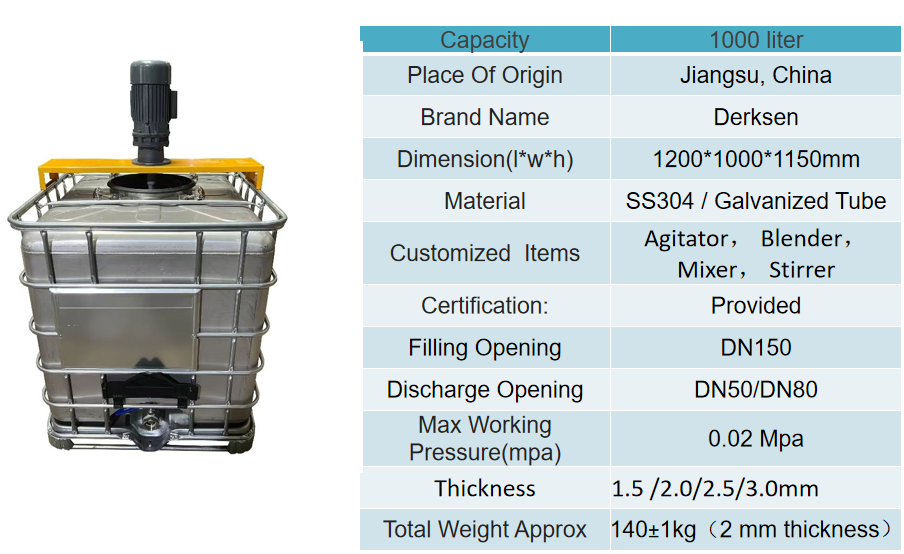

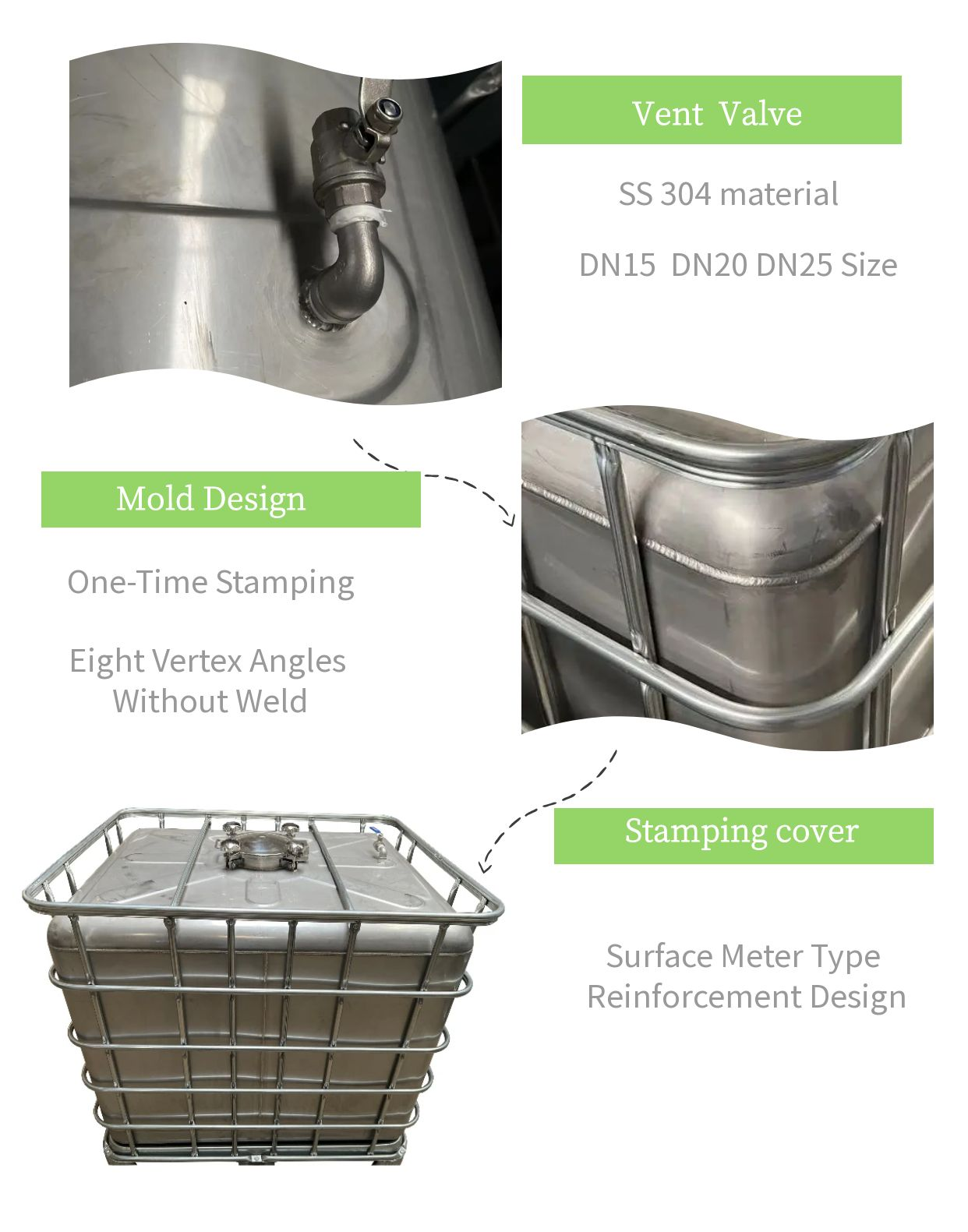

The cover plate of this stainless steel tank is made of 304 stainless steel plate by a one-time stamping mold, Eight Vertex Angles without splicing welds, the cover plate has a reinforcement design, and the side plate is welded with the cover plate after bending. The welding process is TIG welding. With a capacity of 1000 litres, it is designed for the safe storage and transport of liquid or granular materials.

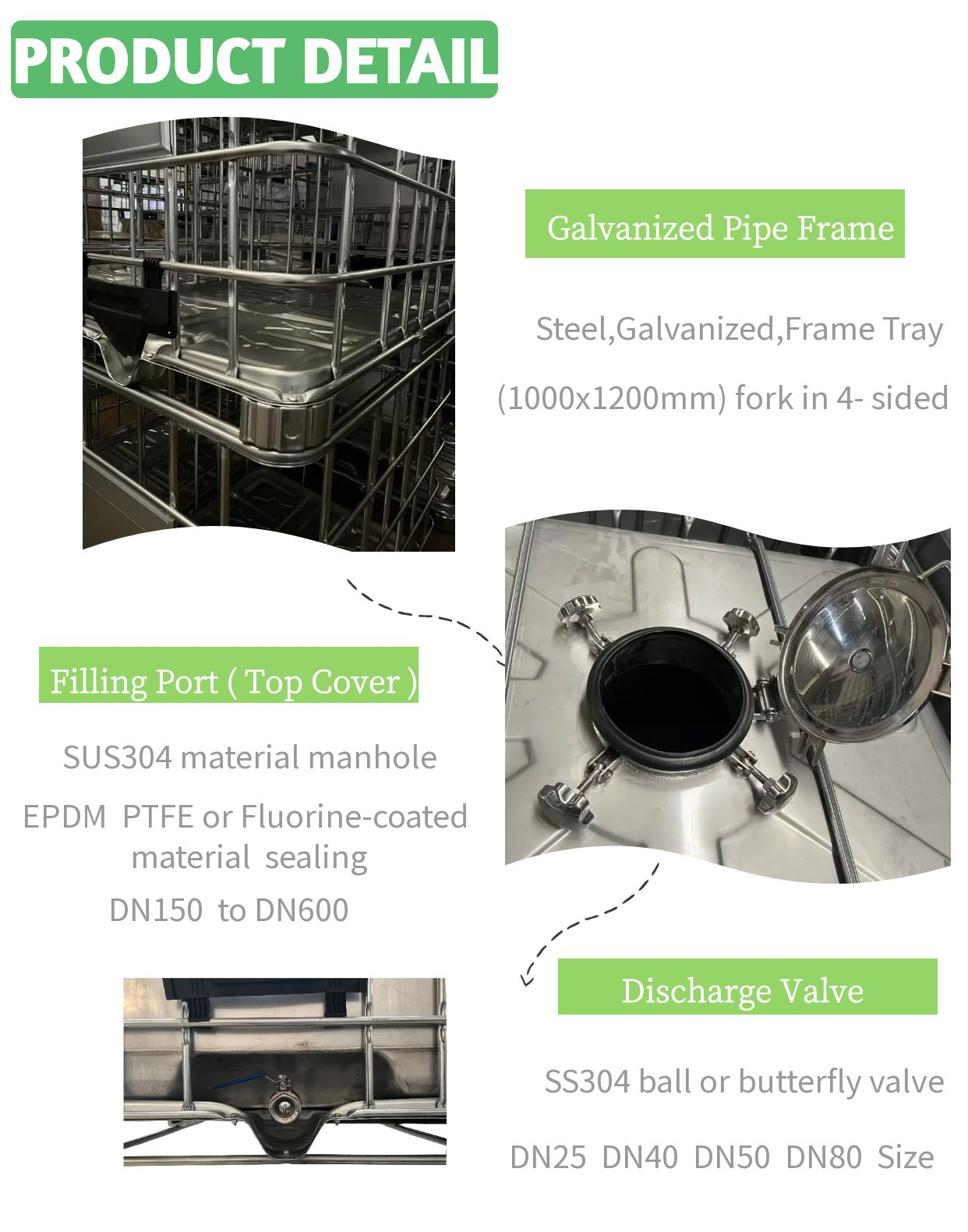

The outer frame is made of galvanized round pipe by automatic welding, and SS304 stainless steel outer frame can also be customized. The outer frame can be stacked, and reused.

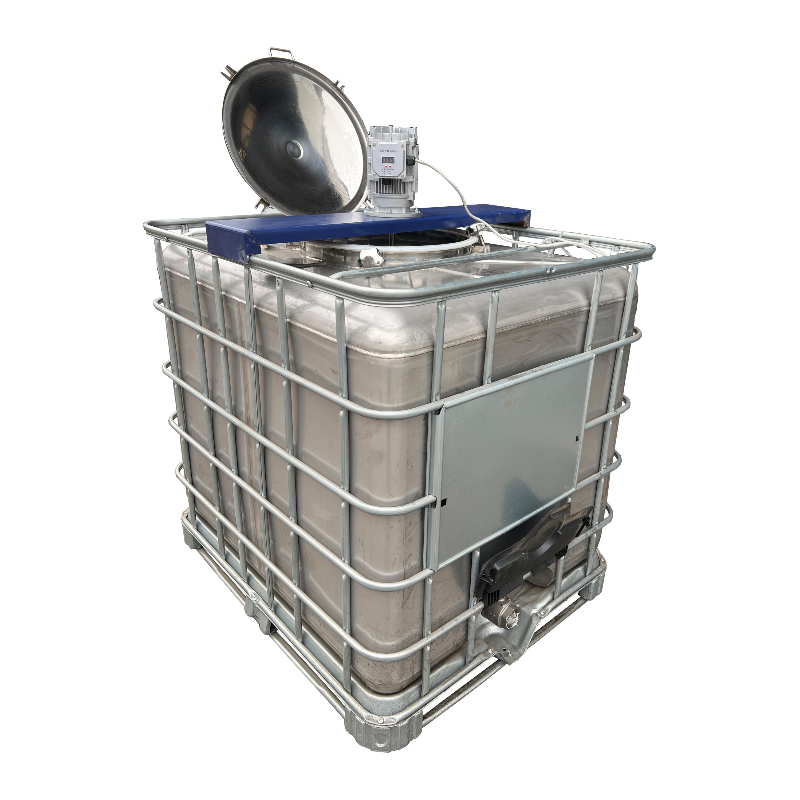

This SS tank is equipped with atmospheric manhole and vent valve at the top, and standard discharge valve at the bottom to support fast emptying.

Manhole and valve size can be customized,The SS tank combines durability, safety and economy with a service life of more than 10 years, making it an ideal alternative to traditional plastic tank.

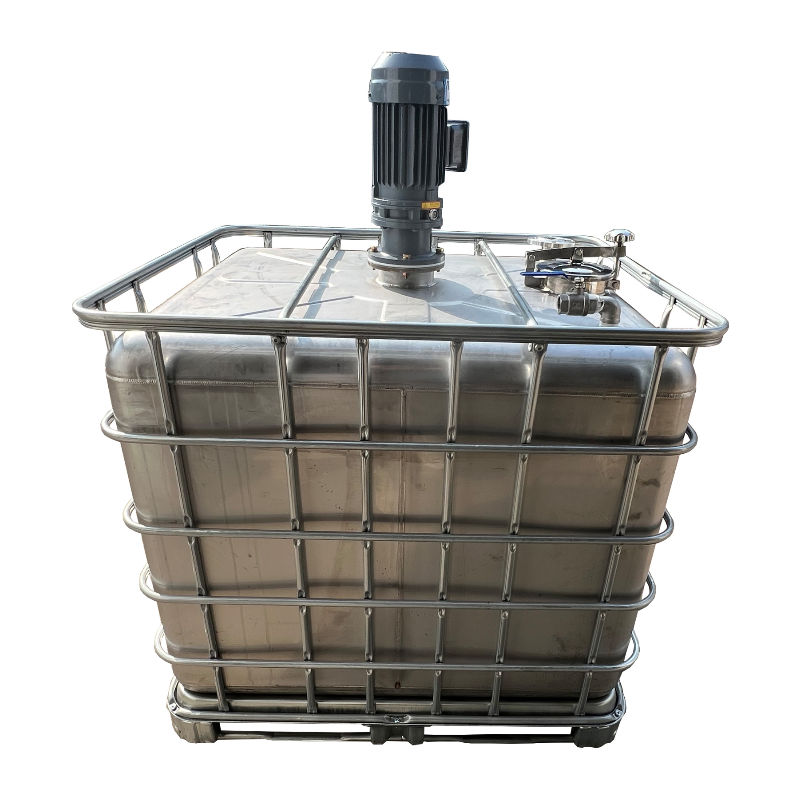

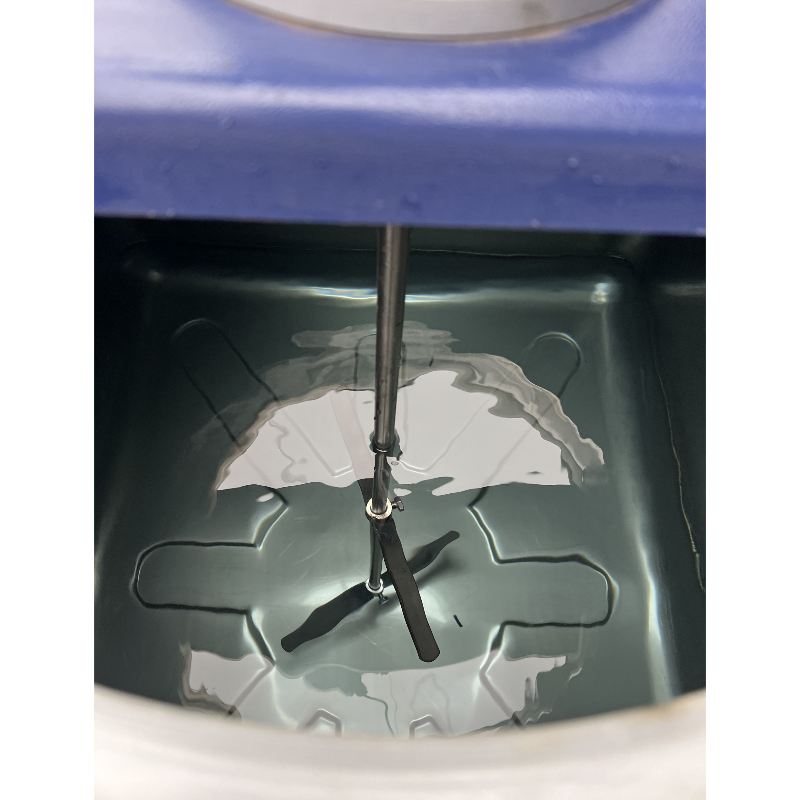

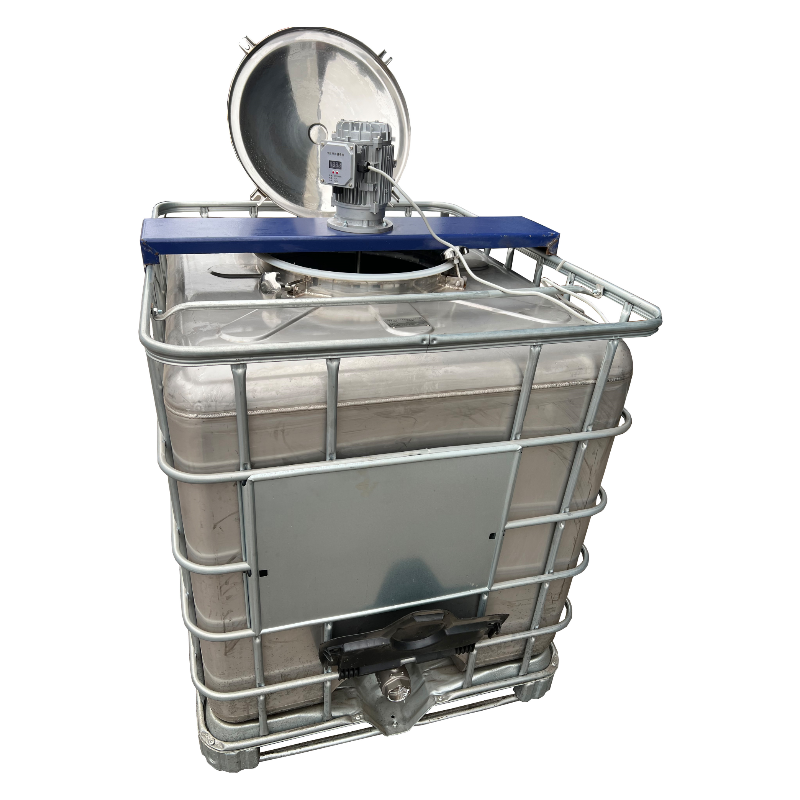

Stainless steel containers with stirring motors (agitator,blender,mixer,stirrer)are widely used in chemical, pharmaceutical and food industries. Stirring paddles (paddle type, turbine type, etc.) are driven by the motor to achieve uniform mixing, reaction or dissolution of materials. The container adopts 304/ 316 stainless steel, which is corrosion-resistant and high-temperature resistant; the motor can be adjusted by frequency conversion (0.1kW ~ 10 kW), suitable for different viscosity media, equipped with mechanical seal to prevent leakage, support explosion-proof (Ex certification) and IP protection grade. Compact structure, suitable for vertical / horizontal installation, regular inspection of seal and bearing lubrication during maintenance to ensure smooth operation, meet GMP or sanitary requirements, and improve production efficiency and safety.
